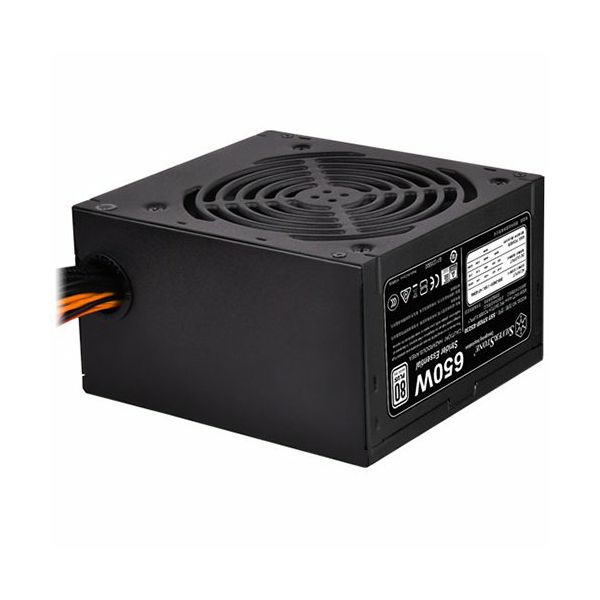

+12V: 50 A
, +3.3V: 20 A
, +5V: 20 A
, +5VSB: 2.5 A
, -12V: 0.3 A
, 20+4-pin Main Connector: 1
, 4/8-pin +12V Power Connector: 1
, 4-pin Floppy Drive Connector: 1
, 4-pin Peripheral Power Connector: 3
, 6/8-pin PCI Express Connector: 4
, 80 Plus Certification: Yes
, Box Weight Brutto (kg): 1.43 kg
, Cable Included: Power Cord
, Circuit Protection: Over Voltage Short Curcuit Protection Over Power
, Depth (mm): 140 mm
, Efficiency: 85%
, External Color: Black
, Fan Diameter: 120 mm
, Fans Installed Quantity: 1
, Height (mm): 86 mm
, Included Accessories: ScrewsUser Guide
, Input Frequency: 47/63 Hz
, Input Power Connectors Quantity: 1
, Input Power Connectors Type: IEC-320 C14
, Input Voltage: AC 180-264 V
, Maximum Fans Supported Quantity: 1
, Maximum Output Power: 650 W
, Mean Time Between Failures: 100000 hr
, Modular Power Supply: No
, Nominal Weight: 1.42 kg
, Output Voltage: DC 3.3/5/±12 V
, Pack Weight Brutto (kg): 1.43 kg
, Pack Weight Netto (kg): 1.41 kg
, Package Type: Retail
, Packs in Box: 1
, Pieces in pack: 1
, Power Adapter and Power Supply Features: Active PFCLow noise
, Power Device Location: Plug-in-module
, Power Device Type: Power Supply
, Retail Packaging Net Weight Carton: 0.01 kg
, Retail Packaging Net Weight Plastic: 0.01 kg
, S-ATA Connector: 4
, Warranty Products Returnable: Yes
, Warranty Term (month): 36 month(s)
, Warranty validation Criteria: Serial Number
, Width (mm): 150 mm
